Cartesian Robots

2-/3-axis assembly, save design and assmebly time

XYTB Series

Belt Driver Type
XYTB650-A XYTB760-A XYTB870-A XYTB876-A XYTB870-G XYTB876-G

X axis(ETB17M)
Repeatability (mm):±0.04(mm)
Lead (mm):40(mm)
Max. Speed (mm/sec):2000
Stroke (50 increments) (mm):550-3050
AC Servo Output:400W

Y axis(ETH14)-
Repeatability (mm):±0.005(mm)
Lead (mm):20
Max. Speed (mm/sec):1000
Stroke (50 increments)(mm):100-650
AC Servo Output:200W

* Maximum speed is based on the AC servo motor's 3000RPM

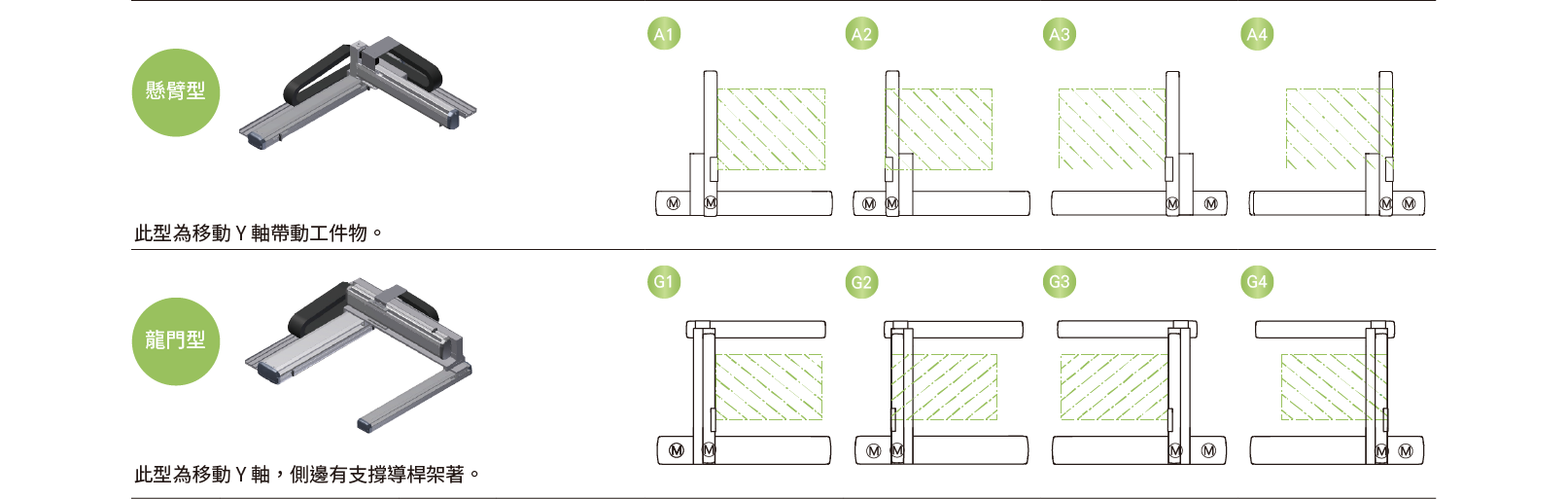

Arm Variations

Multi axis combination explantion. We have developed 2 and 3 axes multi axis actuator through the multiple combinations of single axis actuators.
(1) Low cost compared with vertical multi joints robot.
(2) Ingenious mechanical design making Cartesian robots achieve high rigidity for reducing vibration and deformation.
(3) Multiple combination of single axis actuator.

Selection Guide

Quick and easy model selection application. Get the right motion module for your application.
